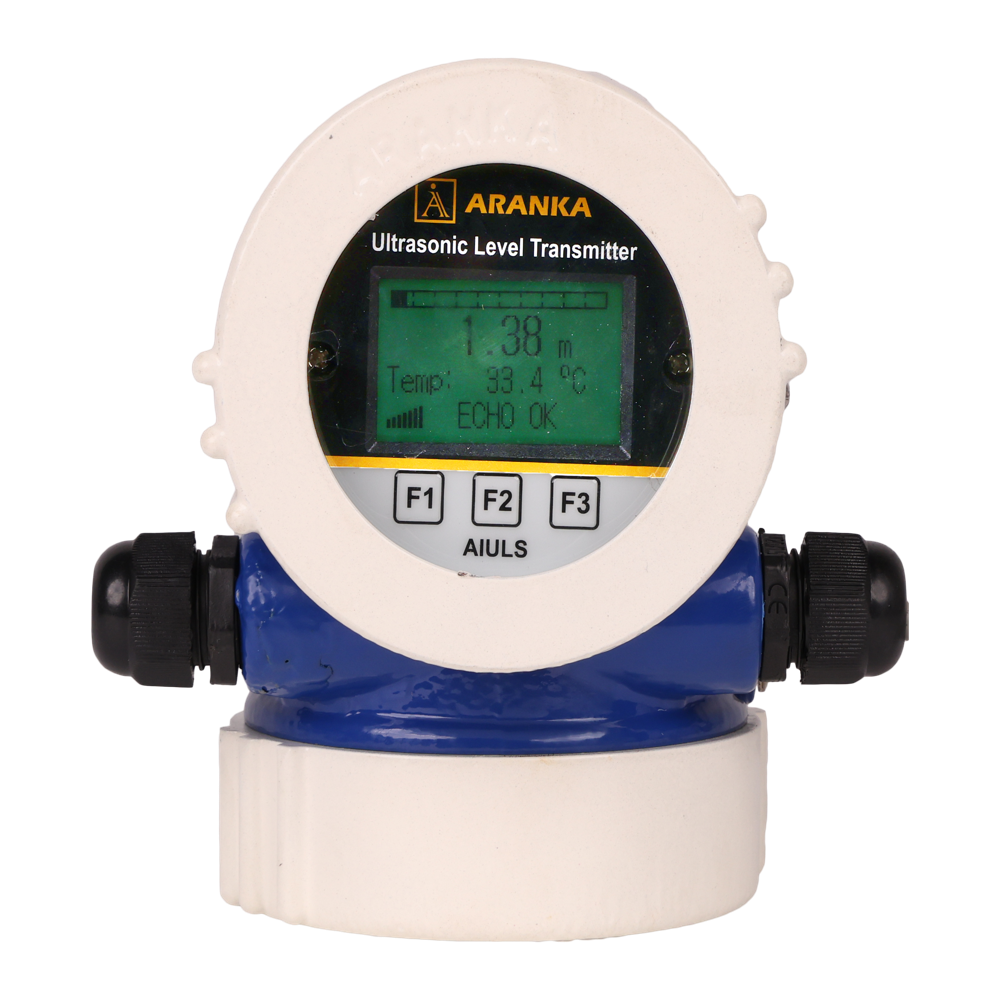

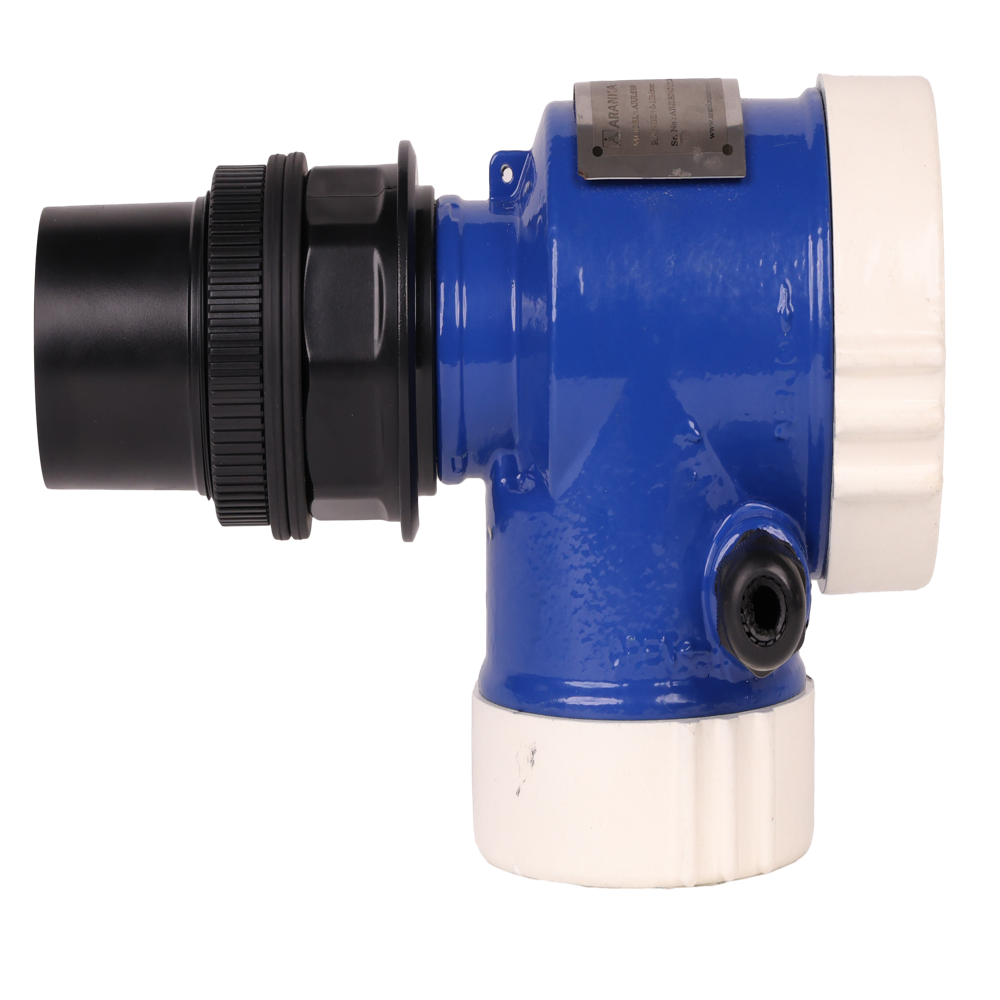

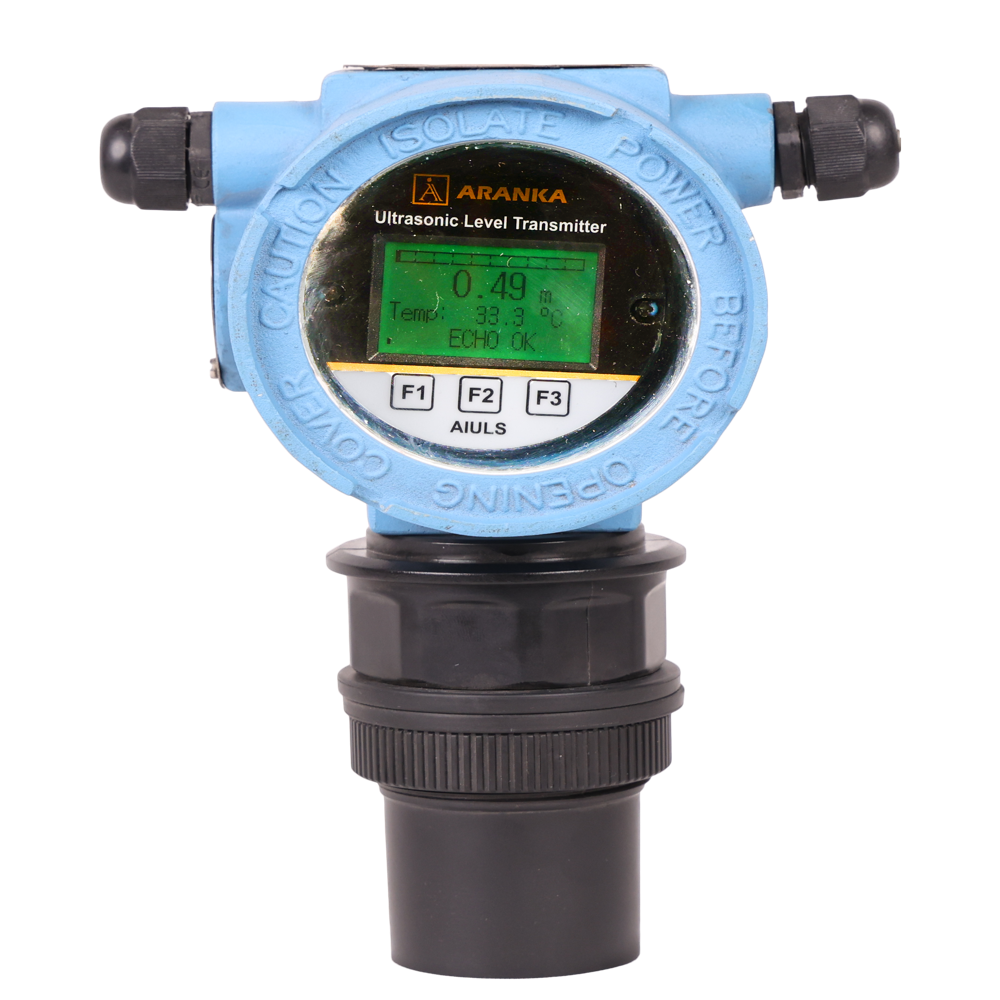

Ultrasonic Level Transmitter
Product Details:
- Color Blue
- Usage Industrial
- Material Cost Iron
- Click to View more
X
Ultrasonic Level Transmitter Price And Quantity
- 1 Piece Piece
Ultrasonic Level Transmitter Product Specifications
- Blue
- Cost Iron
- Industrial
Ultrasonic Level Transmitter Trade Information
- Cash in Advance (CID)
- 100 Piece Per Month
- 1-4 Week
- Asia
- All India
Product Description
Ultrasonic Level Transmitter is a non-contact system consisting of an Ultrasonic Transducer integral with a Trans receiver. The principle of operation is often referred to as the time of flight. An ultrasonic pulse is emitted from the transducer down towards the target and is reflected back from the surface. The time it takes to travel from and to the transducer is directly proportional to the distance traveled. The system consists of a transmitter with 2 core screened signal cable plus an indicator or controller along with a protective canopy and mounting accessories.
Additional Information:
- Production Capacity: 100 nos per month
- Delivery Time: 2-3 WEEKS
|
Usage/Application |
Industrial |
|
Local Display |
Optional |
|
Storage Temperature |
-20 ~50C |
|
Model Name/Number |
AIULS |
|
Brand |
ARANKA INSTRUMENTS LLP |
|
Ambient Temperature |
-40C TO 70C |
|
Measuring Range |
5 METER / 10 METER / 12 METER /15 METER |
|
Flange-Connection |
Optional |
|
Country of Origin |
Made in India |
|
Dead Band |
300 mm |
|
Output Signal |
4-20mA |
|
Protection Class |
IP68 |
|
Material |
Aluminium |
|
Wetted-Parts |
ABS / PVDF |
|
Accuracy |
+ / - 0.5% fsd |
|
Voltage V |
24VDC |
|
Type |
Digital |
|
Blanking Distance |
400mm For 5 & 10 Meter, 500mm For 12 & 15 meter |
|
Beam Angle |
+/ - 5 Degree For For 5 & 10 Meter, + / - 3 Degree For 12 & 15 meter |
|
Resolution |
1 mm |
