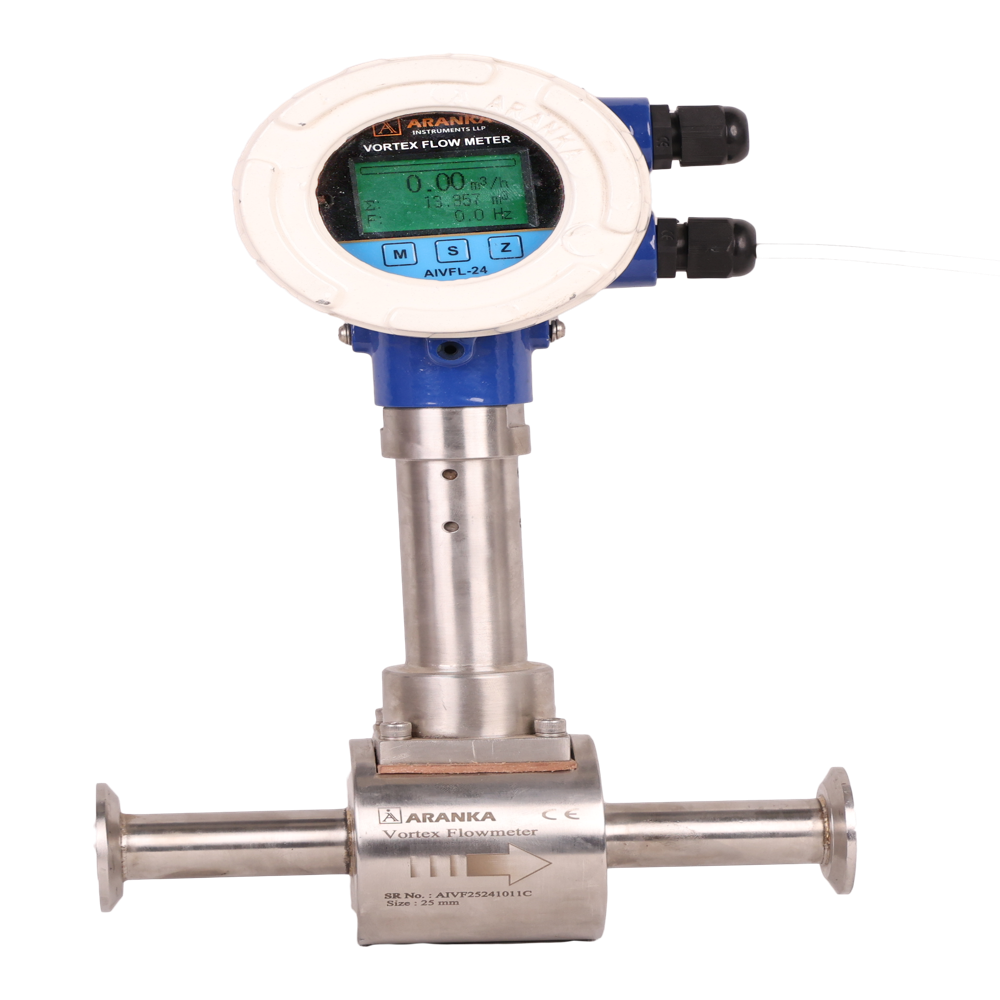

Vortex Liquid Flow Meter

Name: Vortex Liquid Flow Meter
Brand: ARANKA Instruments LLP
Price: 55000.0 INR
Availability: InStock

Price 55000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Vortex Liquid Flow Meter Specification

Cut Size
Customizable by pipe diameter

Application Media
Liquid (water, chemicals, etc.)

Pressure Range
up to 4.0 MPa

Operating Temperature
-20C to 150C

Load Capacity
Standard industrial load

Housing Material
Stainless Steel (Outer Body), Aluminum (Electronics)

Dimension (L*W*H)
Dependent on diameter, typical 300*250*600 mm

Frequency
Pulse output, max 1 kHz

Sensor Type
Vortex shedding

Language
English

Color
Metallic/Silver-gray

Output
4-20 mA, Pulse, RS485

Temperature Range
-20C to 150C

Diameter
DN15 to DN300 (customizable)

Measuring Units
m3/h, L/min

Flow Rate
1-1200 m3/h (pipe-dependent)

Storage Temperature
-40C to 80C

Sensitivity
High (stable in turbulent flow)

Current Range
4-20 mA output

Equipment Type
Vortex Liquid Flow Meter

Signal Type
Analog and Digital

Connector
Cable gland

Model
Vortex Flow Meter - Standard

Response Time
< 1s

Stability
Long-term measurement stability

Measurement Range
0.5~20 m/s (velocity); 1-1200 m3/h (flow rate, based on pipe DN)

Capacity
Up to 1200 m3/h (depending on DN)

Input
24V DC power

Connecting Type
Flange connection

Humidity %
< 95% RH, non-condensing

Protection
IP65

Length
Customizable

Resolution
0.001 m3/h

Process Connection
ANSI/DIN/JIS Flange

Mounting
Flange

Velocity Range
0.5~20 m/s

Connectivity Type
Wired (Analog/Digital Output)

Axis Type
Single Axis (Flow Direction)

Usage
Industrial

Material
Cost Iron

Power Supply
Electrical

Power Consumption
< 5W

Accuracy
1.0% of reading

Display Type
Digital Only

Range
0.5 to 20 m/s (velocity based)

Calibration
Factory calibrated, traceable to standards

Communication Protocols
RS485 MODBUS, HART optional

Electronics Enclosure
Explosion proof optional

Repeatability
0.2%

Installation
Horizontal or Vertical

Fluid Conductivity
No restriction

Body Pressure Rating
PN16, PN25, PN40 (optional)

Ambient Temperature
-20C to 60C

Maintenance
Low, no moving parts

Power Output Protection
Reverse polarity and surge protected

Vortex Liquid Flow Meter Trade Information

Minimum Order Quantity
1 Number

Supply Ability
100 Per Month

Delivery Time
4 Week

Main Domestic Market
All India

Certifications
CE

About Vortex Liquid Flow Meter

The Sanitary Liquid Flow Meteris specifically designed for the measurement of food liquids like milk, cream, juice of various fruits, pharma liquids, etc. It is available with a compact or remote version of the transmitter and can be installed either horizontally or vertically with a variety of optional end-fittings to meet the requirements.

Application Media	Water
Display	Remote, Local
Flow range(min-Max)	As per Line Size
Operating Pressure	30 kg/hrs
Accuracy	1% FS
Power Supply	24VDC
Output	4-20mA
